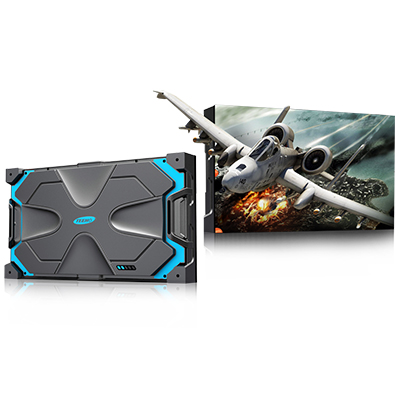

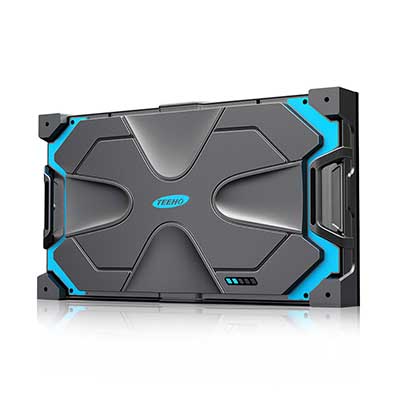

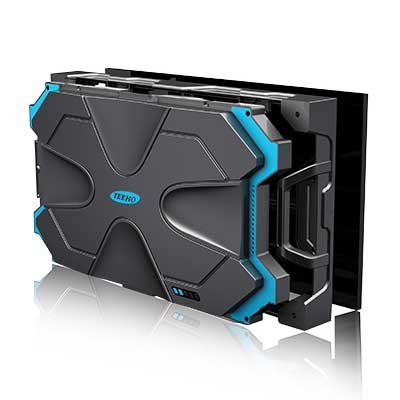

Màn Hình LED P1.66
Mô tả
| THÔNG SỐ KỸ THUẬT
|
|
|
Pixel structure |
Surface mount three-in-one LED |
|
Pixel pitch (mm) |
1.667 |
|
Module resolution (W×H) |
90×101 |
|
Module size (mm) |
150(W)×168.75(H)×10(D) |
|
Box module composition (W × H) |
4×2 |
|
Cabinet resolution (W × H) |
360×202 |
|
Box size (mm) |
600(W)×337.5(H)×65 (D) |
|
Box material |
Die-cast aluminum |
|
*weight (kg/m2) |
40 |
|
Pixel density (dots/m2) |
359111 |
|
Box flatness (mm) |
≤0.2 |
|
Brightness correction |
stand by |
|
Color correction |
stand by |
|
* Brightness (nits) |
600 adjustable |
|
Color temperature (K) |
3000-9300K adjustable |
|
Gray level (Bit) |
12/14/16 |
|
*Horizontal viewing angle ( °) |
160 |
|
*Vertical viewing angle ( °) |
160 |
|
*Maximum contrast |
≥3000:1 |
|
* Peak power consumption (W/m2) |
700 |
|
*Average power consumption (W/m2) |
350 |
|
Frame change frequency (Hz) |
60 |
|
* Refresh rate (Hz) |
≥1920 |
|
Maintenance method |
Front/rear maintenance |
