| Module |
| Dimensions ( w x h) |
250mmx250mm |
Resolution (w xh) |
52 x 52 |
| Pixel pitch |
4.8 mm |
Pixel Density |
43264 /m2 |
| LED Lamp |
Abseb 2525 |
Pixel Configuration |
SMD (three in one) |

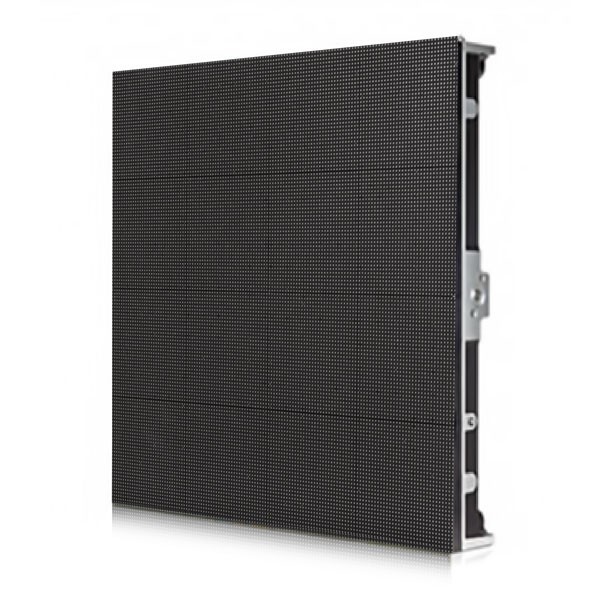

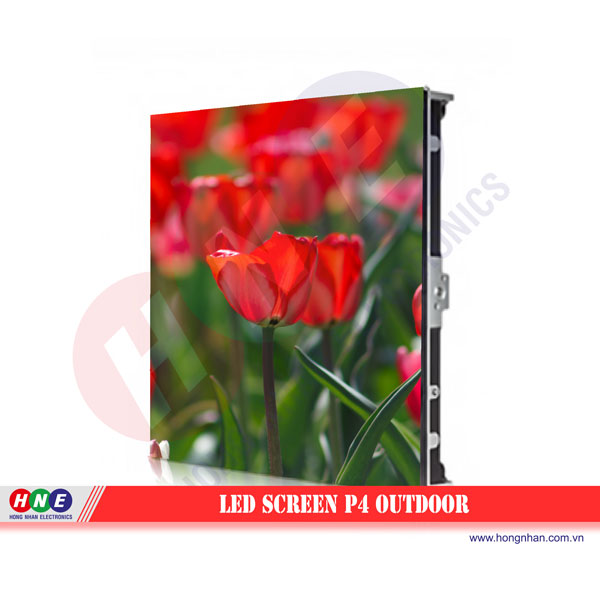

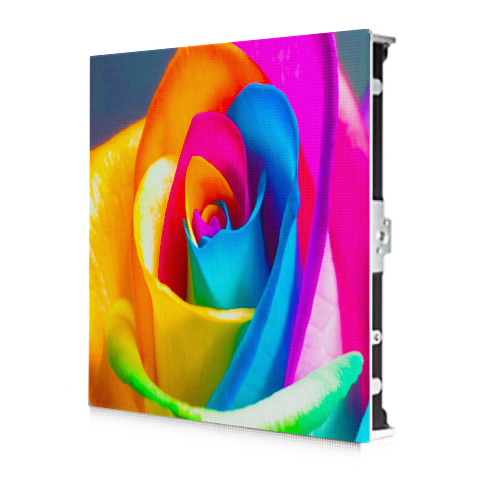

| Standard Panel |
| Dimensions ( w x h x d) (mm) |
500x500x98 |
Module Quantity |
4 |
| Physical Resolution (w x h) |
104 x104 |
Physical Pixels( total) |
10816 |
| Weight/ Panel (kg) |
8 |
Material |
Aluminium |
| Average Power/sqm (watts) |
190 |
Max Power/sqm (watts) |
570 |
| Display Data |
| Item |
Width |
Height |
Total |
| Panel Quantity(pcs) |
20 |
20 |
400 |
| Screen Area Dimension |
10 |
10 |
100.00 |
| Display Resolution(dots) |
2560 |
2560 |
6553600 |
| Total New Weight (kgs) |
3200 |
| Total Avenage Power (watts) |
19000 |
Total Max Power(watts) |
57000 |
| Parameter |
Value |
| Brightness |
4000-4500 cd/m2 |
| Viewing Angle |
Horizontal 160(+80/-80) deg. Vertical 115(+50/-65)deg |
| Minimun Viewing Distance |
4 m |
| Brightness Control |
256 level |
| Gray scale |
65536 level |
| Refresh frequency |
>3840 Hertz; 5023IC |
| Driving mode |
Dynamic scan constant current driving |
| Input power frequency |
50 or 60 Hertz |
| Input Voltage |
110~240 Volt |
| Blind spot rate |
<1/10000 |
| Lifetime at 50% brightness |
100000 hours |
| Ingress Protection |
Front IP65, Rear IP54 |
| Operaing temperature |
0 ~+40 C |
| Operating humidity |
10% ~ 90% |
| Control distance |
CAT5 cable: <100m; Single mode fiber: <10 km |
| Signal inout format |
AV, S-video, VGA, DVI, YPbPr, HDMI, SDI |
